LeCroy - WaveSurfer 400 Series
 FILE
  • »ó¼¼Á¤º¸(Data Sheet) : wavesurfer_korean.pdf (2.75 MB)

  • MODEL : WaveSurfer 400 Series



    ¡ß 200 MHz -500 MHz

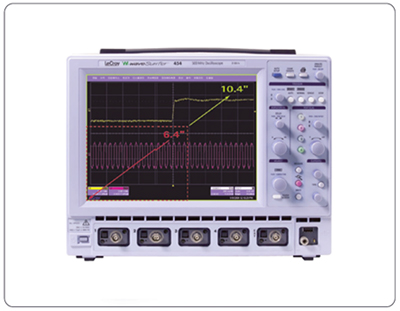

    WaveSurfer´Â LeCroy ¿À½Ç·Î½ºÄÚÇÁÀÇ »õ·Î¿î ¿µ¿ªÀ¸·Î 200 MHz¿Í 350 MHz, 500 MHz ´ë¿ªÀÇ Á¦Ç°À¸·Î °¢°¢ 2ä³Î°ú 4ä³Î·Î ±¸¼ºµÇ¾î ÀÖ½À´Ï´Ù. 10.4¡± SVGA ÅÍÄ¡½ºÅ©¸° µð½ºÇ÷¹À̸¦ äÅÃÇÏ¿© µ¿±Þ ¿À½Ç·Î½ºÄÚÇÁ°¡ Á¦°øÇÏ´Â 6.4ÀÎÄ¡ º¸´Ù 2.5¹è Å« µð½ºÇ÷¹ÀÌ·Î ±¸¼ºµÇ¾î ÀÖÀ¸¸ç, 15 cmÀÇ µÎ²²·Î Çù¼ÒÇÑ °ø°£¿¡¼­µµ ¼Õ½±°Ô »ç¿ëÇÒ ¼ö ÀÖ½À´Ï´Ù. ¶ÇÇÑ WaveSurfer´Â ±ä Æ÷Âø (Long Capture Time) ¸Þ¸ð¸®¿Í Ź¿ùÇÑ ¹®¼­È­ ÀÛ¾÷°ú ³×Æ®¿öÅ© ±â´Éµµ °âºñÇϰí ÀÖ½À´Ï´Ù. ÀÌ¿¡, ±× µ¿¾È ´Ù¼Ò Àú·ÅÇÑ °¡°ÝÀÇ ¿À½Ç·Î½ºÄÚÇÁ¿¡¼­´Â º¼ ¼ö ¾ø´ø ³×Æ®¿öÅ© ¹× ¹®¼­ÀÛ¾÷ ±â´É°ú ÇÔ²² »ç¿ëÀÚµéÀº ¹®¼­È­ ÀÛ¾÷À» »ó´çÈ÷ ºü¸£°Ô ÁøÇàÇÒ ¼ö ÀÖÀ¸¸ç »ç¹«½ÇÀÇ ³×Æ®¿öÅ©¸¦ ÅëÇØ ½±°Ô ¿¬°áÇÏ¿© À̸ÞÀϸµÀ» ÇÒ ¼ö ÀÖ½À´Ï´Ù. ¶ÇÇÑ ÆÄÀÏ ÀúÀåÀ» ³×Æ®¿öÅ© »óÀÇ ÀúÀå °ø°£À̳ª, USB ¸Þ¸ð¸® ½ºÆ½ ¹× ´Ù¸¥ USB ¿ÜºÎ ÀúÀåÀåÄ¡¿¡ ÇÒ ¼ö ÀÖ½À´Ï´Ù. ¶ÇÇÑ, Lecroy´Â ¿À½Ç·Î½ºÄÚÇÁÀÇ ±âº»ÀûÀÎ ±â´É ÀÌ¿ÜÀÇ °ÍÀ» ÇÊ¿ä·Î ÇÏ´Â ¿£Áö´Ï¾î¿¡°Ô´Â ÃÖ´ë 4 ms±îÁö 2 GS/sÀÇ ÃÖ°í »ùÇøµÀ» À¯Áö(ä³Î ´ç 4 Mpts, 2ä³Î ¸ðµå¿¡¼­ 8 Mpts Áö¿ø), È®Àå ¿¬»ê ÆÐŰÁö(ÇÔ¼ö ¿¬»ê±â´É Ãß°¡¿Í ¿¬¼Ó ¿¬»ê ±â´É ¹× ÆÄ¶ó¸ÞÅÍ ¿¬»ê) ¹× Àü±â½ÅÈ£¿¡ ´ëÇÑ ¸¶½ºÅ© Å×½ºÆÃ°ú °°Àº ¾îÇø®ÄÉÀÌ¼Ç ÆÐŰÁöµµ Á¦°øÇÕ´Ï´Ù. °­·ÂÇÑ Åø°ú °æÁ¦¼º ¸ðµÎ¸¦ °í·ÁÇϽŴٸé, Áö±Ý WaveSurfer¸¦ ¼±ÅÃÇϽʽÿÀ.



    Main Specifications





       WS422

    WS424

    WS434 WS432 WS454 WS452
    Bandwidth
    (at probe tip)
    200 MHz 350 MHz 500 MHz
    Rise Time 2 ns  1.15 ns  800 ps
    Input Chs 4 2 4 2 4 2
    Display  10.4" Color flat-panel TFT-LCD, 800x600 SVGA, touch screen
    Sample Rate (Single-shot) 2 GS/s max (interleaved mode), 1 GS/s (all channels)
    Sample Rate
    (RIS Mode)
    50 GS/s
    Standard Record Length 500 kpts/Ch (interleaved mode), 250 kpts/Ch (all channels)
    Max. Record Length (Optional) 2 Mpts/Ch (interleaved mode), 1 Mpt/Ch (all channels)
    Standard Capture Time up to 250 §Á at full sample rate
    Max. Capture Time (Optional) up to 1 ms at full sample rate
    Vertical Resolution 8 bits
    Vertical Sensitivity 1 mV/div -10 V/div (1M¥Ø); 1 mV/div -2 V/div (50¥Ø)
    Vertical (DC Gain) Accuracy ¡¾(1.5% + 0.5% of Full Scale)
    BW Limit 20 MHz 20 MHz, 200 MHz
    Max. Input Voltage ¡¾ 400 Vpk (CAT I), ¡¾ 300 Vpk (CAT II)
    Input Coupling  AC. DC, GND (AC for 1 M¥Ø only)
    Input Impedance  1 M ¥Ø//16 pF, or 50¥Ø +/-1%
    Probing System  BNC or ProBus¢ç
    Probes  One PP007 per channel (Standard)
    Time Base Range 1 ns/div -1000 s/div (roll mode from 200 ms/div - 1000 s/div)
    Time Base Accuracy 10 ppm
    ¡¡
    Triggering System
    Trigger Modes  Normal, Auto, Single, and Stop
    Sources  Any input channel, External, Ext/10, or line; slope and level unique to each source (except line trigger)
    Trigger Coupling  AC, DC, HF, HFRej, LFRej
    Pre-trigger Delay  0 - 100% of full scale
    Post-trigger Delay  0 - 10,000 divisions
    Hold-off  2 ns to 20 s or from 1 to 99,999,999 events
    Internal Trigger Level Range  ¡¾ 5 div from center
    External Trigger Range  EXT/10 ¡¾5V;  EXT ¡¾500 mV
    External Trigger Input Impedance  50¥Ø, 1M¥Ø
    ¡¡
    Standard Triggers
    Edge  Triggers when signal meets slope (positive, negative, or Window) and level condition.
    Glitch  Triggers on positive or negative glitches with widths selectable from 2 ns to 20 s or on intermittent faults. Includes exclusion mode (trigger on intermittent faults by specifying the normal width period).
    Logic (Pattern)  Logic combination (AND, NAND, OR, NOR) of 5 inputs (4 channels and external trigger input). Each source can be high, low, or don't care. The High and Low level can be selected independently.
    Width  Triggers on positive or negative widths with widths selectable from 2 ns to 20 s or on intermittent faults. Includes exclusion mode (trigger on intermittent faults by specifying the normal width period).
    TV-Composite Video  Triggers selectable fields (1, 2, 4 0r 8), Positive or Negative slope, for NTSC, PAL, SECAM, or non-standard video (up to 1500 lines)
    ¡¡
    Optional SMART Triggers¢ç
    Runt  Triggers on positive or negative runts defined by two voltage limits and two time limits. Select between 2 ns to 20 s. Includes exclusion mode (trigger on intermittent faults by specifying the normal width period).
    Slew Rate Triggers on edge rates. Select limits for dV, dt, and slope. Select edge limits between 2 ns to 20 s. Includes exclusion mode (trigger on intermittent faults by specifying the normal width period).
    Interval (Signal or Pattern) Triggers on a source if given state (or transition edge) has occurred on another source. Delay between sources is 2 ns to 20 s, or 1 to 99,999,999 events. Includes exclusion mode (trigger on intermittent faults by specifying the normal width period).
    Dropout Triggers if signal drops out for longer than selected time between 2 ns and 20 s. Includes exclusion mode (trigger on intermittent faults by specifying the normal width period).
    Qualified (State or Edge)  Triggers on any input source only if a defined state or edge occurred on another input source. Delay
    between sources is 2 ns to 20 s, or 1 to 99,999,999 events. Includes exclusion mode (trigger on intermittent faults by specifying the normal width period).
    ¡¡
    Documentation and Connectivity
    Printing Connect to any WindowsXP-compatible printer. Load any standard WindowsXP printer driver onto the unit as future needs require.
    Email  Configure the unit to send an email of a screen image in a variety of formats using MAPI (i.e. through a default email program) or SMTP (no additional program needed).
    Waveform Memories  Save waveform data as a reference trace to be compared to channels, zooms, or math functions.
    Waveform File Data  Save waveform data in the following formats: Binary, ASCII, Excell, Mathcad, MATLAB.
    Screen Image  Save a screen image to the internal hard drive, a user-supplied USB memory stick, or any other peripheral connected to one of the three USB 2.0 ports. Image can be saved in a variety of formats and with white or black background.
    Waveform Labeling (Annotation)  Attach up to 10 labels to any combination of waveforms. Labels appear on screen images.
    Hardcopy Front Panel Button  Configure the front panel Hardcopy button to send an email, save a screen image, save waveform file data, and save to clipboard.
    Networking  Standard 10/100Base-T Ethernet interface (RJ-45 connector). Connect to any network using DHCP with automatically assigned IP address.
    Remote Control  Via LeCroy Remote Command Set (Via Ethernet)
    USB Ports  3 USB ports (one on front of instrument) support Windows compatible devices
    External Monitor Port Standard 15-pin D-Type SVGA-compatible connector for external color
    Parallel Port  25-pin D-Type female (Centronics)
    Serial Port  9-pin D-Type male (not for remote oscilloscope control)
    Audio Port  Mic input, Line Input, Line Output
    ¡¡
    Measure, Zoom , and Math Traces
    Standard Parameter Measurement  Up to 6 of the following parameters can be calculated at one time on any waveform: Amplitude, Area, Base (Low), Delay, Duty, Fall Time (90%-10%), Fall Time (80%-20%), Frequency, Maximum, Mean, Minimum, Overshoot +, Overshoot -, Period, Peak-Peak, Rise Time (10%-90%), Rise Time (20%-80%), RMS, Skew, Standard Deviation, Top (High), Width. Measurements may be gated.
    Zooming  Use front panel QuickZoom button, or use touch screen or mouse to draw a box around the zoom area.
    Standard Math  Operators include Sum, Difference, Product, Ratio, and FFT (up to 25 kpts with power spectrum output and rectangular, VonHann, and FlatTop windows). 1 math function may be defined at a time.
    Extended Math (MathSurfer Options)  Adds the following additional math functions: Absolute Value, Averaging (summed and continuous), Derivative, Envelope, Enhanced Resolution, (to 11 bits), Floor, Integral, Invert, Reciprocal, Roof, Square, and Square Root. Also adds chaining of two math functions, and rescalling to different units.

    Automatic Setup
    Auto Setup Automatically sets timebase, trigger, and sensitivity to display a wide range of repetitive signals. Vertical Find Scale automatically sets the vertical sensitivity and offset for the selected channel.
    Analog Persistence  When ON, persistence applied to all waveforms. Select analog or color-graded. Variable saturation level, with aging time selectable from 500 ms to infinity.
    ¡¡
    Setup and Waveform Storage
    Front Panel and Instrument Status  Save to the internal hard drive, over the network, or to a USB connected peripheral device.
    Waveform Traces  Save to to one of four internal memories with 16 bit resolution for recall/comparison.
    Waveform Data  Save to the internal hard drive, over the network, or to a USB connected peripheral device.
    ¡¡
    Output
    Calibrator 500 Hz - 1 MHz square wave or DC Level; Select from -1.0 to + 1.0 M¥Ø, output on front panel
    Control Signals  Rear Panel: TTL level, BNC output; Choice of trigger ready, trigger out, pass/fail status. (output resistance 300 W ? 10%)


    Environmental & Safety

    Temperature (Operating) +5 ¡É to +40 ¡É
    Temperature (Non-Operating) -20 ¡É to +60 ¡É
    Humidity (Operating) 5% to 80% relative humidity (non-condensing) at <=30 ¡É. Upper limit derates to 55% relative humidity (non-condensing) at +40 ¡É.
    Humidity (Non-Operating) 5% to 95% relative humidity (non-condensing) as tested per MIL-PRF-28800F.
    Altitude (Operating) up to 3048 m (10,000 ft) at up to 25 ¡É
    Altitude (Non-Operating) Up to 12,192 m (40,000 ft)
    Vibration (Operating) Random vibration, 0.31 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
    Vibration (Non-Operating) Random vibration, 2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes
    Functional Shock 20 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total
    Certification CE Approved, UL (Std. UL 3111-1) and cUL (Std. CSA C22.2 No. 1010-1) listed. EMC Directive 89/336/EEC; EN61326-1:1997+A1:1998+A2:2001. Low Voltage Directive 73/23/EEC; EN 61010-1:2001 Product Safety (installation Category II, Polution Degree 2, Protection Class 1)
    ¡¡
    Physical Dimensions
    Dimensions (HxWxD)  264 mm x 340 mm x 152 mm (10.25" x 13.4" x 6"). Excluding accessories and projections.
    Net Weight  6.8 kg (15 lbs). Excluding accessories.
    ¡¡
    General
    Power (AC)  100-120 Vrms at 50/60/400 Hz; 200-240 Vrms at 50/60 Hz; Max. Power Consumption: 170 VA
    Warranty and Calibration  3-year warranty; calibration recommended annually.
