Programmable DC Power Supply - UDP Series 1000W

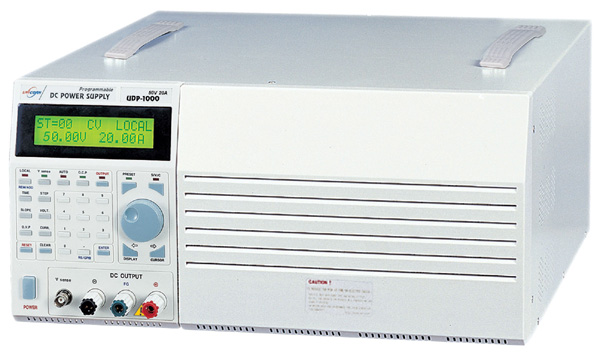

MODEL : UDP Series 1000W


 FEATURES



EASY,OPERATION,WITH JOG-DIAL

"LCD"DISPLAY,BACK LIGHT

MEMORY STORE AND RECALL 100 POINTS

AUTO STEP RUNNING(MAX 100 FUNCTION)

TIME/SLOPE/COUNTER/OVP SETTING

OVER CURRENT PROTECTED

OCP/OVP/OTP PROTECTION

CONSTANT VOLTAGE & CURRENT OUTPUT

HIGH STABILITY,LOW DRIFT

HIGH ACCURACY,AND LOW RIPPLE

V-SENSE CONNECT

RS-232C / GP-IB INTERFACE (Option)

PRODUCTS AND COMPONENTS TEST

WARNING SYSTEM MESSAGE

POWER SYSTEM APPLICATION

Analog Input (0~10Vdc Remote Function)

V-Sensing Function

External Output On/Off Function

PRODUCTS AND COMPONENTS TEST

POWER SYSTEM APPLICATION



SPECIFICATION
UDP SERIES 1000W

MODEL

UDP-3030

UDP-5020

UDP-3003

OUTPUT

30V 30A

50V 20A

300V 3A

OUTPUT

WATT

900W

1000W

900W

VOLTAGE(CV)

0 ~ 30V

0 ~ 50V

0 ~ 300V

CURRENT(CC)

0 ~ 30A

0 ~ 20A

0 ~ 3A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.04% + 8㎷

0.04% + 20㎷

0.1% + 150㎷

Current

0.1% + 30㎃

0.1% + 20㎃

0.1% + 3㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode(rms/p-p)

4㎷/8㎷

5㎷/10㎷

30㎷/90㎷

Current

60㎃

40㎃

6㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.04% + 8㎷

0.04% + 20㎷

0.1% + 150㎷

Current

0.1%+30㎃

0.1%+20㎃

0.1% + 3㎃

LOAD REGULATION

Voltage

5㎷

10㎷

30㎷

Current

30㎃

20㎃

3㎃

LINE REGULATION

Voltage

5㎷

10㎷

30㎷

Current

3㎃

2㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

10㎷

Current

1㎃

1㎃

0.1㎃

L.C.D DISPLAYER

VOLTAGE

2 ×16 LCD 4 ½  AUTO RANGE OF 5 READING/Sec

CURRENT

2 ×16 LCD 4 ½  AUTO RANGE OF 5 READING/Sec

PROTECTION
SETTING

OVER VOLTAGE

FULL SCALE OF DC OUTPUT VOLTAGE + 9%

OVER CURRENT

FULL SCALE OF DC OUTPUT CURRENT + 2% (ONLY O.C.P OUTPUT MODE)

TEMPERATURE

ONLY HEAT SINK 85℃

AUTO SEQUENCE
(DYNAMIC)

AUTO RUN STEP

MAXIMUM 100 STEP

SETTING TIME

1ms ~ 50,000s (Per 10㎲)

SLOPE TIME

1ms ~ 50s (Per 10㎲)

COUNTER

1 ~ 50,000 CYCLE ("0" SET: ∽)

TRANSIENT RECOVERY TIME

100 ㎲  (50%LOAD CHARGE,MINIMUM LOAD 0.5A)

OPERATING ENVIRONMENT

0~50 ℃,80%R.H.

MEMORY ADDRESS

MAX. 100 POINTS (VOLTAGE, CURRENT, TIME, SLOPE)

INTERFACE FOR PC

GP-IB(OPTION), RS-232C(RS-485)

AC POWER SOURCE

AC 110/220V ± 10% , 50/60 ㎐ (CUSTOMER MADE)

ACCESSORIES

INPUT POWER CORD, MANUAL , OUTPUT CABLE, SOFTWARE(ONLY RS-232C) CD , RS-232C CABLE

WEIGHT (APPROX)

57 Kg

55 Kg

52 Kg

DIMENSION(W*H*D ㎜)

420*200*500

420*200*500

420*200*500
