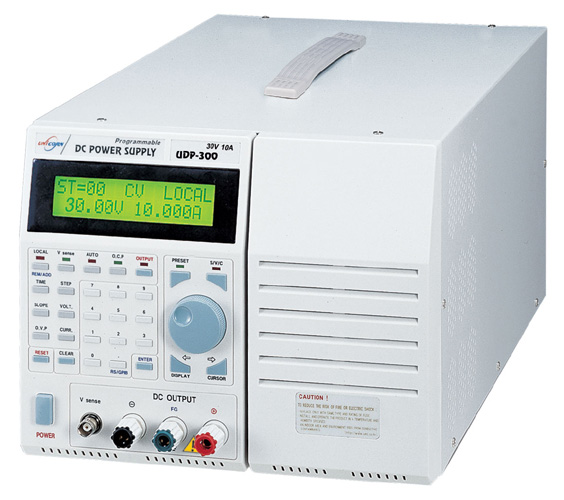

Programmable DC Power Supply - UDP Series 300W
SPECIFICATION UDP-150 SERIES : Programmable DC Power Supply - UDP Series 350W

MODEL : UDP Series 300W


 FEATURES



EASY,OPERATION,WITH JOG-DIAL

"LCD"DISPLAY,BACK LIGHT

MEMORY STORE AND RECALL 100 POINTS

AUTO STEP RUNNING(MAX 100 FUNCTION)

TIME/SLOPE/COUNTER/OVP SETTING

OVER CURRENT PROTECTED

OCP/OVP/OTP PROTECTION

CONSTANT VOLTAGE & CURRENT OUTPUT

HIGH STABILITY,LOW DRIFT

HIGH ACCURACY,AND LOW RIPPLE

V-SENSE CONNECT

RS-232C / GP-IB INTERFACE (Option)

PRODUCTS AND COMPONENTS TEST

WARNING SYSTEM MESSAGE

POWER SYSTEM APPLICATION

Analog Input (0~10Vdc Remote Function)

V-Sensing Function

External Output On/Off Function

PRODUCTS AND COMPONENTS TEST

POWER SYSTEM APPLICATION



SPECIFICATION
UDP SERIES 300W

MODEL

UDP-3001

UDP-3010

UDP-605

OUTPUT

300V 1A

30V 10A

60V 5A

OUTPUT

WATT

300W

300W

300W

VOLTAGE(CV)

0~300V

0 ~ 30V

0 ~ 60V

CURRENT(CC)

0~1A

0 ~ 10A

0 ~ 5A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.1% + 150㎷

0.04% + 6㎷

0.04% + 30㎷

Current

0.1% + 3㎃

0.1% + 10㎃

0.1% + 5㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode(rms/p-p)

30㎷/90㎷

3㎷/6㎷

6㎷/12㎷

Current

6㎃

20㎃

10㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.1% + 150㎷

0.04% + 6㎷

0.04% + 30㎷

Current

0.1%+3㎃

0.1% + 10㎃

0.1% + 5㎃

LOAD REGULATION

Voltage

30㎷

3㎷

10㎷

Current

3㎃

10㎃

5㎃

LINE REGULATION

Voltage

30㎷

3㎷

10㎷

Current

2㎃

2㎃

2㎃

CONTROL
RESOLUTION

Voltage

10㎷

1㎷

10㎷

Current

0.1㎃

1㎃

1㎃

L.C.D DISPLAYER

VOLTAGE

2 ×16 LCD 4 ½  AUTO RANGE OF 5 READING/Sec

CURRENT

2 ×16 LCD 4 ½  AUTO RANGE OF 5 READING/Sec

PROTECTION
SETTING

OVER VOLTAGE

FULL SCALE OF DC OUTPUT VOLTAGE + 9%

OVER CURRENT

FULL SCALE OF DC OUTPUT CURRENT + 2% (ONLY O.C.P OUTPUT MODE)

TEMPERATURE

ONLY HEAT SINK 85℃

AUTO SEQUENCE
(DYNAMIC)

AUTO RUN STEP

MAXIMUM 100 STEP

SETTING TIME

1ms ~ 50,000s (Per 10㎲)

SLOPE TIME

1ms ~ 50s (Per 10㎲)

COUNTER

1 ~ 50,000 CYCLE ("0" SET: ∽)

TRANSIENT RECOVERY TIME

100 ㎲  (50%LOAD CHARGE,MINIMUM LOAD 0.5A)

OPERATING ENVIRONMENT

0~50 ℃,80%R.H.

MEMORY ADDRESS

MAX. 100 POINTS (VOLTAGE, CURRENT, TIME, SLOPE)

INTERFACE FOR PC

GP-IB(OPTION), RS-232C(RS-485)

AC POWER SOURCE

AC 110/220V ± 10% , 50/60 ㎐ (CUSTOMER MADE)

ACCESSORIES

INPUT POWER CORD, MANUAL , OUTPUT CABLE, SOFTWARE(ONLY RS-232C) CD , RS-232C CABLE

WEIGHT (APPROX)

25 Kg

27 Kg

27 Kg

DIMENSION(W*H*D ㎜)

250*200*450

250*200*450

250*200*450

※ 이외의 용량은 주문제작 가능합니다.
