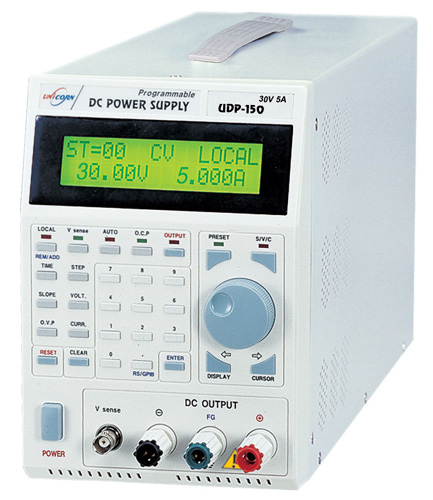

Programmable DC Power Supply - UDP Series 150W

MODEL : UDP Series 150W


 FEATURES



 EASY,OPERATION,WITH JOG-DIAL

 "LCD"DISPLAY,BACK LIGHT

 MEMORY STORE AND RECALL 100 POINTS

 AUTO STEP RUNNING(MAX 100 FUNCTION)

 TIME/SLOPE/COUNTER/OVP SETTING

 OVER CURRENT PROTECTED

 OCP/OVP/OTP PROTECTION

 CONSTANT VOLTAGE & CURRENT OUTPUT

 HIGH STABILITY,LOW DRIFT

 HIGH ACCURACY,AND LOW RIPPLE

 V-SENSE CONNECT

 RS-232C / GP-IB INTERFACE (Option)

 PRODUCTS AND COMPONENTS TEST

 WARNING SYSTEM MESSAGE

 POWER SYSTEM APPLICATION

 Analog Input (0~10Vdc Remote Function)

 V-Sensing Function

 External Output On/Off Function

 PRODUCTS AND COMPONENTS TEST

 POWER SYSTEM APPLICATION

SPECIFICATION
UDP-150 SERIES

MODEL

UDP-305

UDP-503

UDP-1501

OUTPUT

30V 5A

50V 3A

150V 1A

OUTPUT

WATT

150W

150W

150W

VOLTAGE(CV)

0 ~ 30V

0 ~ 50V

0 ~ 150V

CURRENT(CC)

0 ~ 5A

0 ~ 3A

0 ~ 1A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.06% + 10㎷

0.06% + 20㎷

0.06% + 80㎷

Current

0.1% + 5㎃

0.1% + 5㎃

0.1% + 3㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode(rms/p-p)

1.5㎷/10㎷

1.5㎷/12㎷

15㎷/30㎷

Current

10㎃

6㎃

6㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.06% + 15㎷

0.06% + 20㎷

0.06% + 80㎷

Current

0.1%+8㎃

0.1%+6㎃

0.1%+3㎃

LOAD REGULATION

Voltage

7㎷

10㎷

20㎷

Current

5㎃

3㎃

3㎃

LINE REGULATION

Voltage

3㎷

3㎷

20㎷

Current

2㎃

2㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

10㎷

Current

1㎃

1㎃

1㎃

L.C.D DISPLAYER

VOLTAGE

2 ×16 LCD 4 ½  AUTO RANGE OF 5 READING/Sec

CURRENT

2 ×16 LCD 4 ½  AUTO RANGE OF 5 READING/Sec

PROTECTION
SETTING

OVER VOLTAGE

FULL SCALE OF DC OUTPUT VOLTAGE + 9%

OVER CURRENT

FULL SCALE OF DC OUTPUT CURRENT + 2% (ONLY O.C.P OUTPUT MODE)

TEMPERATURE

ONLY HEAT SINK 85℃

AUTO SEQUENCE
(DYNAMIC)

AUTO RUN STEP

MAXIMUM 100 STEP

SETTING TIME

1ms ~ 50,000s (Per 10㎲)

SLOPE TIME

1ms ~ 50s (Per 10㎲)

COUNTER

1 ~ 50,000 CYCLE ("0" SET: ∽)

TRANSIENT RECOVERY TIME

100 ㎲  (50%LOAD CHARGE,MINIMUM LOAD 0.5A)

OPERATING ENVIRONMENT

0~50 ℃,80%R.H.

MEMORY ADDRESS

MAX. 100 POINTS (VOLTAGE, CURRENT, TIME, SLOPE)

INTERFACE FOR PC

GP-IB(OPTION), RS-232C(RS-485)

AC POWER SOURCE

AC 110/220V ± 10% , 50/60 ㎐ (CUSTOMER MADE)

ACCESSORIES

INPUT POWER CORD, MANUAL , OUTPUT CABLE, SOFTWARE(ONLY RS-232C) CD , RS-232C CABLE

WEIGHT (APPROX)

13 Kg

14 Kg

12 Kg

DIMENSION(W*H*D ㎜)

140*200*450

140*200*450

140*200*450

 ※ 이외의 용량은 주문제작 가능합니다.
