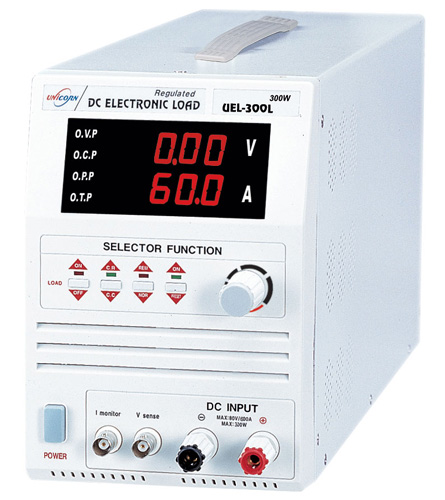

Regulated DC Electronic Load : UEL-200L / UEL-200H

MODEL : UEL-200L / UEL-200H

 FEATURES



200W ELECTRONIC LOAD
CC,CR OPERATION MODE
POWER MOSFET
HIGH ACCURACY
PORTABLE TYPE SINGLE LOAD

 APPLICATION



POWER SUPPLY LOAD REGULATION
AC TO DC ADAPTOR
DC TO DC CONVERTER
POWER CONPONENT TESTING
VOLTAGE AND CURRENT SOURCE TESTING

SPECIFICATION

UEL-200L

UEL-200H

OPERATING

RANGE

POWER

0 ~ 200W

0 ~ 200W

VOLTAGE

2.5 ~ 80V

2.5 ~ 400V

CURRENT

0 ~ 40A

0 ~ 4A

MODE

CC

RANGE

0.00 ~ 19.99A

20.0 ~ 40.0A

0.000 ~ 1.999A

2.00 ~ 4.00A

RESOLUTION

10mA

100mA

1mA

10mA

CR

RANGE

0.0625 ~ 8 KΩ

0.0625 ~ 400KΩ

EXT WAVE IN

0~5V DC / 0~40A (CC)

0~5V DC / 0~4A (CC)

DISPLAY

VOLTAGE

3 1/2 AUTO 2 RANGE, 5 READINGS/Sec

ACCURACY= ±0.03% OF RANGE + 2 DIGITS

CURRENT

3 1/2 AUTO 2 RANGE, 5 READINGS/Sec

ACCURACY= ±0.03% OF RANGE + 2 DIGITS

VOLTAGE SENSE INPUT (V SENSE)

0 TO 84V

0 TO 435V

CURRENT MONITOR (I MONITOR)

0~10V DC / 0~40A

0~10V DC / 0~4A

PROTECTION

OPP(POWER)

210W

OVP(VOLTAGE)

84V

435V

OCP(CURRENT)

42A

4.2A

OTP(TEMPERATURE)

OVER TEMPERATURE (HEAT SINK 85℃)

AC POWER SOURCE

AC 110/220V ± 10% , 50/60 ㎐ (CUSTOMER MADE)

OPERATING ENVIRONMENT

0 ℃ TO 50℃, 80% R.H.

ACCESSORIES

INPUT POWER CORD, MANUAL , OUTPUT CABLE

BNC to BNC CABLE, BNC to CLIPE CABLE

WEIGHT (APPROX)

7 Kg

6 Kg

DIMENSION (W*D*H mm)

140 * 450* 200mm

※ 이외의 용량은 주문제작 가능합니다.
