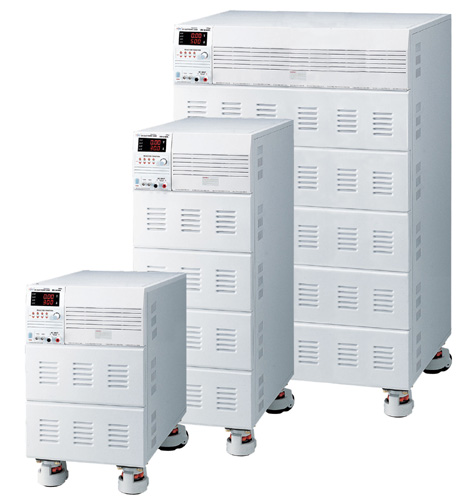

Regulated DC Electronic Load : UEL-10000L

MODEL : UEL-10000L

 FEATURES



POWER RATING : 3KW , 5KW , 10KW
ACTIVE POWER DISSIPATION BALANCE
RESOLUTION 3 1/2 AUTO RANGE
OVP,OCP,OPP,OTP PROTECTION
HIGH ACCURACY


 APPLICATION



OWER SUPPLY TRANSIENT RESPONSE
R&D , QULITY CONTROL, ATE SYSTEM
POWER SUPPLY LOAD REGULATION
POWER CONPONENT TESTING

SPECIFICATION

UEL-10000L

OPERATING

RANGE

POWER

0 ~ 5000W

VOLTAGE

2.5 ~ 80V

CURRENT

0 ~ 500A

MODE

CC

RANGE

LOW=0.0 ~ 199.9A

HIGH=200~500A

RESOLUTION

100mA

1A

CR

RANGE

0.005 ~ 8 KΩ

EXT WAVE IN

0~5V DC / 0~300A (CC)

DISPLAY

VOLTAGE

3 1/2 AUTO 2 RANGE, 5 READINGS/Sec

ACCURACY= ±0.03% OF RANGE + 2 DIGITS

CURRENT

3 1/2 AUTO 2 RANGE, 5 READINGS/Sec

ACCURACY= ±0.03% OF RANGE + 2 DIGITS

VOLTAGE SENSE INPUT (V SENSE)

0 TO 84V

CURRENT MONITOR (I MONITOR)

0~10V DC / 0~300A

PROTECTION

OPP(POWER)

10100W

OVP(VOLTAGE)

84V

OCP(CURRENT)

505A

OTP(TEMPERATURE)

OVER TEMPERATURE (HEAT SINK 85℃)

AC POWER SOURCE

AC 110/220V ± 10% , 50/60 ㎐ (CUSTOMER MADE)

OPERATING ENVIRONMENT

0 ℃ TO 50℃, 80% R.H.

ACCESSORIES

INPUT POWER CORD, MANUAL , OUTPUT CABLE

BNC to BNC CABLE, BNC to CLIPE CABLE

WEIGHT (APPROX)

170 Kg

DIMENSION (W*D*H mm)

700 * 680* 1120mm

※ 이외의 용량은 주문제작 가능합니다.
