MODEL
: UDL-10000L
|
|
|  FEATURES |

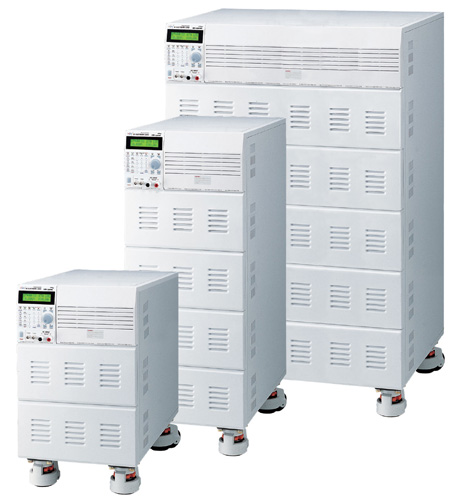

POWER RATING : 3KW , 5KW , 10KW
ACTIVE POWER DISSIPATION
BALANCE
OVP,OCP,OPP,OTP,RPP
PROTECTION
CC,CR,CV,CP OPERATION
MODE
16BIT A/D CONVERTER
DYNAMIC,STATIC,SEQUENCE,EXTERNAL
FUNTION MODE
HIGH ACCURACY
|
| APPLICATION |
TELECOM POWER SUPPLY BATTERY DISCHARGE
VOLTAGE AND CURRENT SOURCE TESTING
POWER SUPPLY TRANSIENT RESPONSE
CURRENT LIMIT TEST AND BATTERY
EMULATION BY USING CV MODE
POWER FACTOR CORRECTION
|
SPECIFICATION |
UDL-10000L |
OPERATING
RANGE |
POWER |
0 ~ 10000W |
VOLTAGE |
1.5 ~ 80V |
CURRENT |
0 ~ 500A |
MODE |
CC |
RANGE |
LOW=0.00~50.00A |
HIGH=0.0~500.0A |
RESOLUTION |
10 mA |
100 mA |
CV |
RANGE |
1.50
~ 80.00V |
RESOLUTION |
0.02V |
CR |
RANGE |
LOW=0.4~200.0 Ω |
HIGH=0.04~20.00Ω |
RESOLUTION |
0.1
Ω |
0.01 Ω |
CP |
RANGE |
0.0 ~ 10000W |
RESOLUTION |
2.5
W |
F
U
N
C
T
I
O
N |
AUTO
SEQUENCE |
MEMORY STEP |
MAX. 100 STEP (ST=00 ~ ST=99)
/ (MODE,TIME,CC,CV,CR,CP) |
TIME |
CC,CV,CR |
0.001 TO 50000,000sec
(1msec / UNIT) |
CP |
0.002 TO 50000,000sec (1msec / UNIT) |
COUNTER |
1 TO 50000 CYCLES, 0 = ∽ |
INRUSH
(CC) |
CURRENT |
500.1 TO 750.0A (ONLY CC MODE) |
TIME |
0.001 TO 0.1sec (MAX 100msec) |
DYNAMIC |
MEMORY STEP |
2 CHANEL (HIGH
, LOW) |
FREQUENCE |
1Hz ~ 5KHz |
DUTY |
2 ~ 98% |
RISE & FALL TIME |
20 ㎲~ 20 ㎳ |
STATIC |
MEMORY STEP |
10 CHANNEL (ST=AA,BB,CC,DD,EE,FF,GG,HH,II,JJ)
(MODE,TIME,CC,CV,CR,CP) |
EXT WAVE IN |
0~10V DC / 0~500A
(CC,CV,CP) |
GO/NG & ON VOLTAGE SETTING |
0.00
TO 84.00V |
DISPLAY |
VOLTAGE |
4 1/2 AUTO 2 RANGE, 5 READINGS/sec
ACCURACY= ±0.03% OF RANGE + 2 DIGITS |
CURRENT |
LOW |
0.0000~50.000A |
ACCURACY= ±0.07% OF RANGE + 2 DIGITS 5
READING/sec |
HIGH |
0.000~500.00A |
VOLTAGE SENSE INPUT (V SENSE) |
0. TO 84V |
CURRENT MONITOR (I MONITOR) |
0~10V DC / 0~500A |
PROTECTION |
OPP(POWER) |
10100W |
OVP(VOLTAGE) |
84V |
OCP(CURRENT) |
510A |
OTP(TEMPERATURE) |
OVER TEMPERATURE (HEAT SINK 85℃) |
REVERSE POLARITY |
ABOUT 500A DURING 1 MINUTE |
LOAD INPUT SHORT |
CURRENT=500A, RESISTANCE=0.003Ω (MAX) |
PC INTERFACE(REMOTE CONTROL) |
GP-IB & RS-232C (RS-485)=ISOLATED WITH PHOTO-IC |
LINE INPUT VOLTAGE |
AC 110V
/ 220V ± 10%, 60Hz |
OPERATING ENVIRONMENT |
0 ℃ TO 50℃, 80% R.H. |
ACCESSORIES
|
INPUT
POWER CORD, MANUAL , OUTPUT CABLE
SOFTWARE(ONLY
RS-232C) , BNC
to BNC CABLE, BNC to CLIPE CABLE
|
| WEIGHT
(APPROX)
|
170
Kg
|
DIMENSION (W*D*H mm) |
700 * 680* 1320mm |
※ 이외의 용량은 주문제작 가능합니다. |
|
